Use webcam to detect and visualize hands (2D Canvas)

An example on how to get camera feed, detect and visualize hands in real time in a 2D canvas.

PreviousDetect and visualize hands from a videoNextUse webcam to detect and visualize hands (3D World space)

Last updated 1 year ago

This example demonstrates how to load and display camera feed in a Unity scene with a and an , implement hand tracking with the , and use the to render detected fingers on a 2D canvas.

This is a code walkthrough of the LightBuzz_Hand_Tracking_2D Hand Tracking Unity plugin sample. The plugin includes the no-code demo that has the same functionality.

Step 1: Create a Unity scene

Open the Unity Project you created in the section.

Right-click on the Assets folder and select Create > Scene.

Type the scene's name. In this example, we'll use the name WebcamDemo.

After the scene is created, right-click on the scene and select GameObject > UI > Canvas.

Navigate to the LightBuzz Prefabs folder at Assets\LightBuzz Hand Tracking\Runtime\Prefabs.

Then, right-click on the Hierarchy pane and select Create Empty.

Give a name to the new component. In this example, we'll use the name Demo.

Then, go to the Inspector pane and select Add Component. In the search bar, type new and select the New script option.

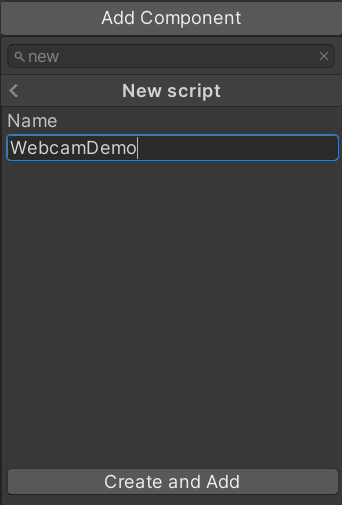

Type the script's name and select Create and Add. For this example, we'll use the name WebcamDemo.

Step 2: Initialize the visual components

Double-click on the newly created MonoBehaviour script and import the necessary namespaces.

using LightBuzz.HandTracking;
using System.Collections.Generic;
using UnityEngine;
[SerializeField] private ImageView _image;
[SerializeField] private WebcamSource _webcam;
[SerializeField] private HandManager _handManager;

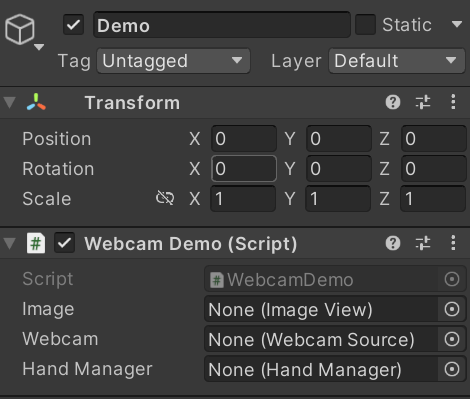

After adding the serialized fields, go to the Unity Editor to connect these fields with the Demo component.

At the Inspector pane, select the round button next to each SerializeField.

Then, at the Scene tab, select the corresponding prefab. For example, for the Image field, select the ImageView prefab.

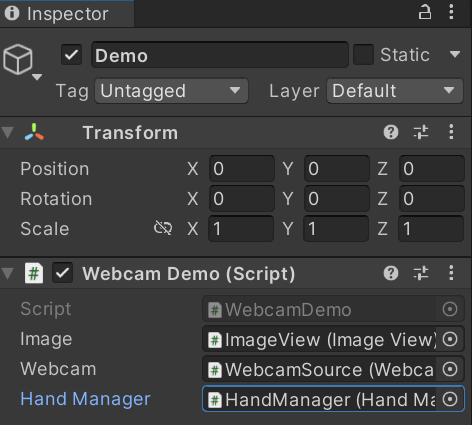

When all fields are connected, the result should resemble the following image.

Then, select the HandManager prefab, under the Canvas, and connect the Image field to the ImageView prefab.

Make sure the Is 2D option is selected to see the hand tracking detections in the 2D space. If the option is not checked, detections are displayed in the 3D world space.

After connecting all the fields, navigate to the Canvas to set the render options.

Change the Render Mode to Screen Space - Camera.

Then, set the Main Camera, from the Scene tab, as the Render Camera.

When all the render options are set, the result should look like the following image.

HandTracker _handTracker = new HandTracker();

Step 3: Open the webcam

Open the webcam to get the live feed.

_webcam.Open();

In this example, the camera is opened in the Start() method. Alternatively, you could open the camera with the click of a button.

Step 4: Get the live feed

Check that the camera is open and available for capturing video.

if (!_webcam.IsOpen) return;
_image.Load(_webcam);

Step 5: Detect hands

List<Hand> hands = _handTracker.Load(_image.Texture);

Step 6: Visualize the hands

_handManager.Load(hands);

Steps 4 through 6 are incorporated into the Update() method.

Step 7: Release the resources

Close the webcam to stop the live feed, preventing further video capture.

_webcam.Close();
_handTracker.Dispose();

In this example, the resources are released in the OnDestroy() method. Alternatively, you could do that with the click of a button or in the OnApplicationQuit() method.

Full example code

Here is the full example code that has the same functionality as the Hand Tracking Unity plugin LightBuzz_Hand_Tracking_2D sample.

using LightBuzz.HandTracking;
using System.Collections.Generic;
using UnityEngine;

public class WebcamDemo : MonoBehaviour
{
    [SerializeField] private ImageView _image;
    [SerializeField] private WebcamSource _webcam;
    [SerializeField] private HandManager _handManager;

    private readonly HandTracker _handTracker = new HandTracker();

    private void Start()
    {
        _webcam.Open();
    }

    private void OnDestroy()
    {
        _webcam.Close();
        _handTracker.Dispose();
    }

    private void Update()
    {
        if (!_webcam.IsOpen) return;

        // 1. Draw the camera texture.
        _image.Load(_webcam);

        // 2. Detect hands in the camera texture.
        List<Hand> hands = _handTracker.Load(_image.Texture);

        // 3. Visualize the hands on a Canvas.
        _handManager.Load(hands);
    }
}

By following these steps, you will be able to load the camera feed into your application, detect hands in real time, and finally, render these detections on a 2D canvas.

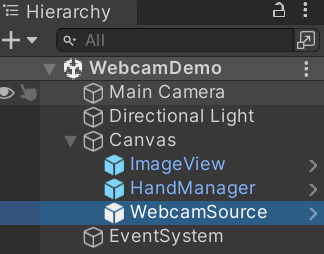

For this example, drag and drop the , and prefabs into the Canvas.

For this example, we'll need a to get the frames, an to draw camera texture and a to visualize the detected hands.

Finally, return to the script and instantiate a to detect hands.

Load the new frame from the _webcam object onto the to show the live feed to your users.

Pass the Texture2D object from the camera frame to the for processing.

The will analyze the texture and detect any hands present in the image.

To display the detected hands on a 2D canvas, simply pass the detections to the . It will manage the rendering and updates required to accurately depict the hands on the canvas based on the detection data provided.

Dispose of the object to ensure that all associated resources are released.
